aStat
aStat is a comfortable statistic process control (SPC) solution designed to create sophisticated statistic reports of your Production, Measuring or ERP data.
If you use STATISTICA (StatSoft Inc., USA) make use of our plug-in to build aStat reports of nearly any size.
aStat together with our Import and Control Tools provide self-acting data management including import of data, periodic reporting and distribution.

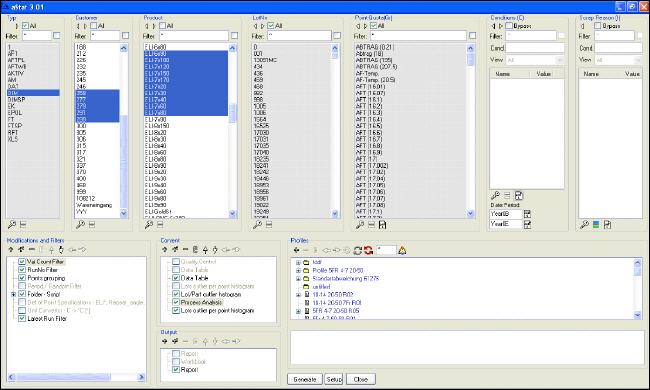

aStat - Initial Screen
Create reports by one click
 |
Reports of Production, Measuring and ERP data |
|
|
Show / hide fields |
|
|
Any sequence and order |
|
|
Select manually or by key inside of a field - aStat then updates all dependent columns right away |
|
|
Select any number and any complexity of filters |
|
|
Selecti any number of report contents |
|
|
Select and combine different report formats for charts and tables |

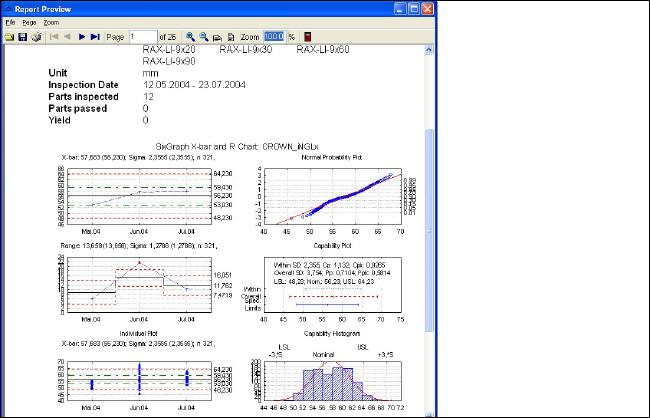

| Part/Point Matrix | Overview of scrap, lot number and part number |
| Lot/Point Outlier Histogram | Overview of scrap with upper and lower tolerances and their violation |
| Point Table | Summary of all measured points with tolerances and statistic values (e.g Cpk) |
| Process Analysis | Graphic process analysis |
| Process Analysis QC | Process analysis with quality control |
| Data table | Table overview |
| ... | Alongside all other STATISTICA results can be integrated with plug-ins |
All preselections, filters and contents are saved to a profile.
The whole setting can now be called up at one mouse click:
aStat displays the data according to preselection and creates - at one more click - a report due to definition.
|
|
Periodic Creating and Distribution of aStat reports by our tools |
|
|
Alerts depending on statistic conditions, e.g. when exceeding a limit an e-mail is sent |
|
|
Import of measurement and production data from any source (Q-DAS, XLS, customer databases) |
|
|
Import from measuring points automatically in the background |
|
|
In case of manual data acquisition from production APROPO XLS for MS-EXCEL will support the import to aStat |
|
|
aStat is a FDA validated sample solution (http://www.statsoft.de/anwenderberichte/admedes.pdf ) |
|
|
Top 20 of Innovation Award IT 2009 by the Initiative Mittelstand under patronage of the Bundesministerium für Wirtschaft und Technologie |
Application
aStat comes along with a database for Production and ERP Data.
Further it is possible to customise aStat for proprietary data structures.
